With the MIDICRAFT black edition, a new housing variant is presented, which is intended to better protect the product from damage caused by impacts, even in rough touring use. In addition to the steel front panel, the case consists of a bottom panel made of anodized aluminum and a frame made of TPU, a rubber-like material. This case is not only a replacement for the beech wood case that has been discontinued for the time being, but is also significantly superior to it in terms of its mechanical properties. For the “black edition”, the circuit board has also been slightly redesigned and the USB power supply is now equipped with surge protection. I hope that switching to the new housing will also increase the availability of the controllers in the long term.
There are three different buttons to choose from:
BOX Pale Blue – Strongly pronounced pressure point with audible click. Not recommended for quiet environments.
BOX Silent Button – Slightly pronounced pressure point. Silicon dampeners reduce noise which leads to a rubbery sound.
BOX Ocean Whale Button – Medium pressure point. Silicone dampers on the stamp reduce noise resulting in a rubbery sound. The noise is further reduced by an additional damper on the button housing. The button also has an LED light pipe, which means that the illumination of the key cap is limited to the upper area.
You can listen to the sound of the different buttons in this video:https://youtu.be/l3T8JfqVTCw
- 5 sliders (65 + -55g sliding resistance)
- 20 RGB backlit mechanical buttons
- connect up to 16 devices with CAN Bus
- 16 “Pages” for various settings
- SYSEX import / export for settings
- Extensive menu, no PC required for configuration
- Encoder with OLED display for configuration of the device
- DIN 5pol. Midi interface (via adapter cable)
- CC 14-bit option for analog control elements (hardware limit 10bit)
- LUA script for GrandMA2 OnPC and consoles
- optionally available LUA script for connection to GrandMA3 OnPC and consoles via MA3 mode (from v2.4)
- RD/Showcokpit-Mode
- USB MIDI device
- USB bus-powered (USB compliance mode) or via USB power supply unit (min.1A)
- High-quality housing made of steel, aluminum and TPU
- Dimensions (W x H x D): 125 x 42 x 255 mm
- Scope of delivery: MIDICRAFT.FADE, USB cable, terminating resistor

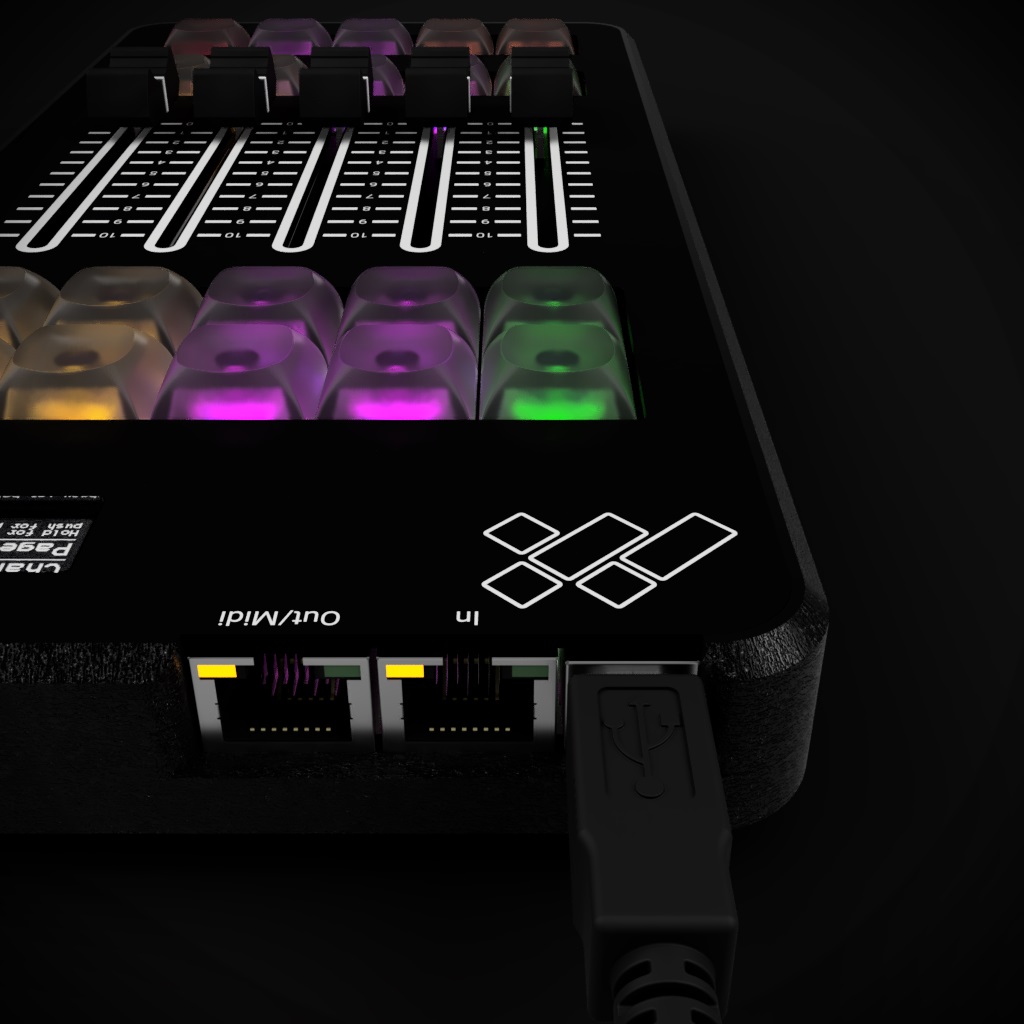

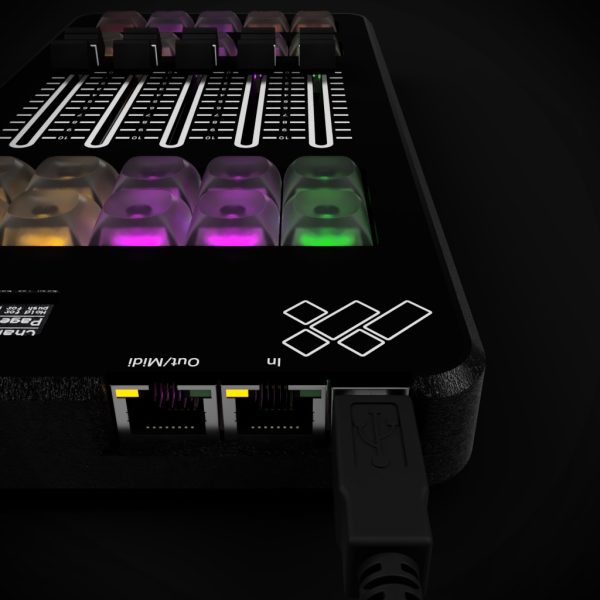

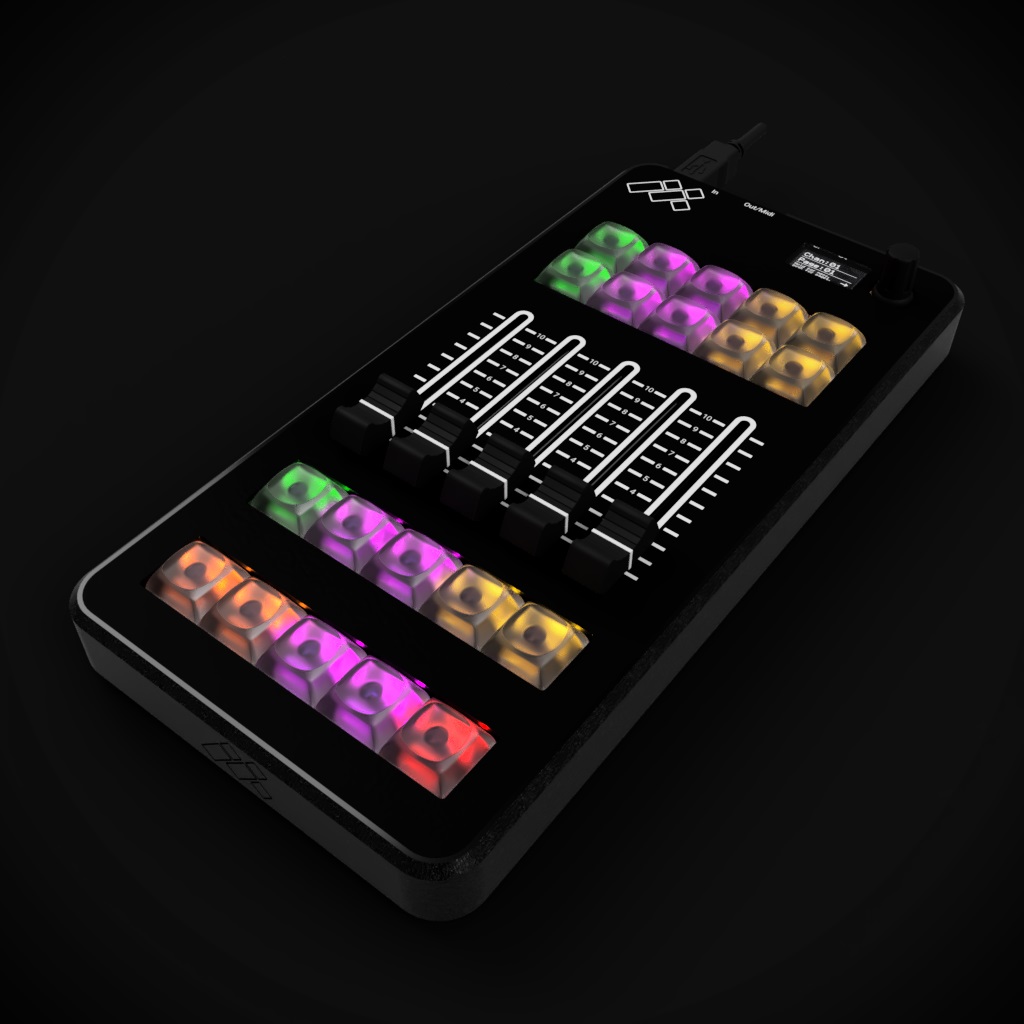

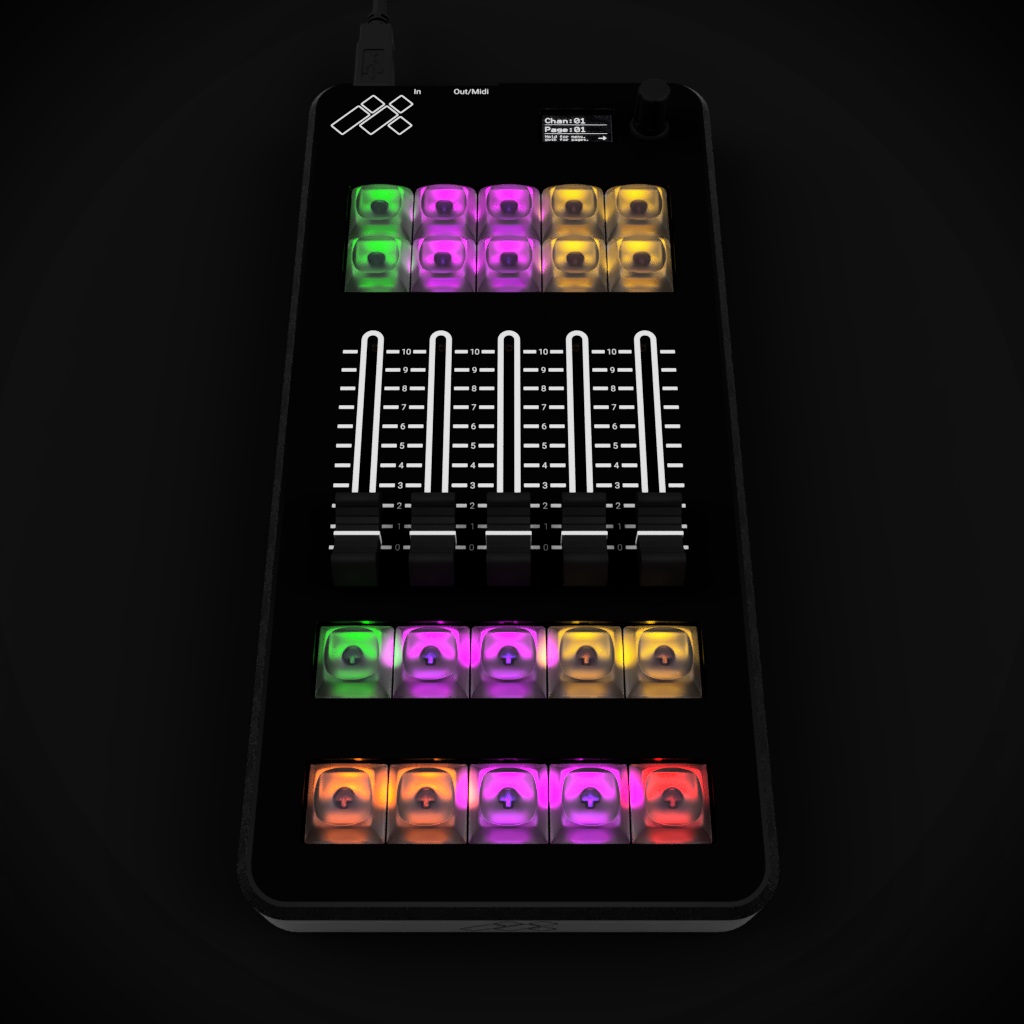

The images are renderings and may differ from the delivered product. You can see pictures of a prototype here. Simply click on the relevant view.
| Weight | 1,5 kg |
|---|---|
| Dimensions | 30 × 20 × 10 cm |
| Batch | January (Shipping until 01/31/26), February (Shipping until 02/28/26), March (Shipping until 03/31/25), April (Shipping until 04/30/26), May (Shipping until 05/31/26), June (Shipping until 06/30/26), July (Shipping until 07/31/26), August (Shipping until 08/31/26), September (Shipping until 09/30/26), October (Shipping until 10/31/26), November (Shipping until 11/30/26) |
Product safety
Manufacturer information
MIDICRAFT Inh. Alexander Michel
Triftstraße 68
31832 Springe
Deutschland
info@midicraft.de
Person responsible for the EU
Alexander Michel
Product safety documents
Safety instructions
Operating environment:
The device is only intended for the use described in the instructions. Carefully read all the information and instructions supplied before use.
The appliance may only be used in dry rooms within a temperature range of 0°C to 50°C. Operation in damp (washroom, swimming pool, etc.) or dusty environments or in the direct vicinity of heat sources (radiators, ovens, spotlights) is not permitted.
Furthermore, the device should not be exposed to direct sunlight.
ESD:
This device contains a microcontroller for signal processing and control functions. In very rare situations, strong interference, interference from an external source or static electricity can cause the device to block. In this unlikely event, switch the device off, wait at least five seconds and then switch it on again.
The device sockets should be protected against static discharge. The device should be unplugged during thunderstorms or when not in use to prevent damage from overvoltage.
Power supply:
Operation of the devices is only permitted on a regular USB interface. For operation using a USB power supply unit, ensure the correct voltage (max. 5V). Any warranty is excluded for damage caused by an external device, power supply unit or cable.
Mechanical influences:
Avoid dropping the appliance or exposing it to other mechanical influences that are not considered "normal" in the context of operation. The housing and the operating elements may be damaged.
Foreign objects and liquids:
Do not allow any objects or liquids to enter the inside of the housing. Any warranty is excluded for damage caused by foreign bodies or liquids.
If a device is damaged by liquid, disconnect the power supply immediately and dry the device thoroughly using suitable means. If in doubt, send the appliance in for servicing before putting it back into operation.
Repair:
Repairs under warranty can only be carried out by MIDICRAFT. In the event of a repair by a third party or own repair not authorized by MIDICRAFT, the warranty claim expires. Spare parts (sliders, potentiometers, buttons, encoders and sockets) are available from MIDICRAFT. Simply get in touch with MIDICRAFT. (info@midicraft.de)
Care and cleaning:
Only a dry, soft cloth or brush should be used for cleaning. Cleaning agents or water are not permitted for cleaning. If these are used, the warranty claim expires.
Risk of suffocation:
To avoid any risk of swallowing, the correct position of button, fader, potentiometer and encoder caps should be checked regularly. Loose screws must be tightened to prevent them from being lost.
Only logged in customers who have purchased this product may leave a review.
Frequently asked questions
As long as the software has the ability to receive midi notes and assign functions, the devices work with it.
The midi feedback for LEDs only works as long as your software can issue the corresponding midi commands. In any case, you can use the LEDs statically to mark functions. You can adjust the color in the device menu and even emulate feedback.
Do you already know RD/Showcockpit? This makes it very easy to connect the MIDICRAFT controllers to various programs such as GrandMA2 and 3.
As long as your lighting console has the ability to receive midi notes and assign corresponding functions, the devices work with it. You can either connect it to a MIDI Din interface via USB or via the midi adapter cable available in the shop.
The midi feedback for LEDs only works as long as your lighting console can issue the corresponding midi commands. In any case, you can use the LEDs statically to mark functions. You can adjust the color in the device menu and even emulate feedback.
For the GrandMA2 you will find an LUA script in the area Support> Downloads which returns an LED feedback to the controller. You can get a LUA script for the GrandMA3 from Showfile Creator
The buttons send a NoteOn with Velocity 127 when pressed and a NoteOff with Velocity 0 when released.
The faders and potentiometers send velocity note values with 7-bit resolution 0-127 or a CC value with 14-bit resolution. You can configure the behavior for each analog control in the Midi-notes Options menu.
You can either operate the encoders in absolute mode, then they output velocity notes in 7-bit format. Or you can use them as relative encoders, then they output up/down commands. For further information, please take a look at the operating instructions.
Yes, it is possible to control the color, intensity and automatic flashing of the LEDs via MIDI. Just look at section 8 of the instruction manual.
There are three different buttons to choose from.
BOX Royal Tactile Button - Strongly pronounced pressure point with an audible click at the bottom stop. Tends to develop a light click after some time of using them.
BOX Silent Button - Very light pressure point. Silicon dampeners reduce noise which leads to a rubbery sound.
BOX Ocean Whal Button - Slightly pronounced pressure point. Silicon dampeners reduce noise which leads to a rubbery sound. The noise is further reduced by an additional damper on the button housing.
You can listen to the sound of the buttons in this video:
